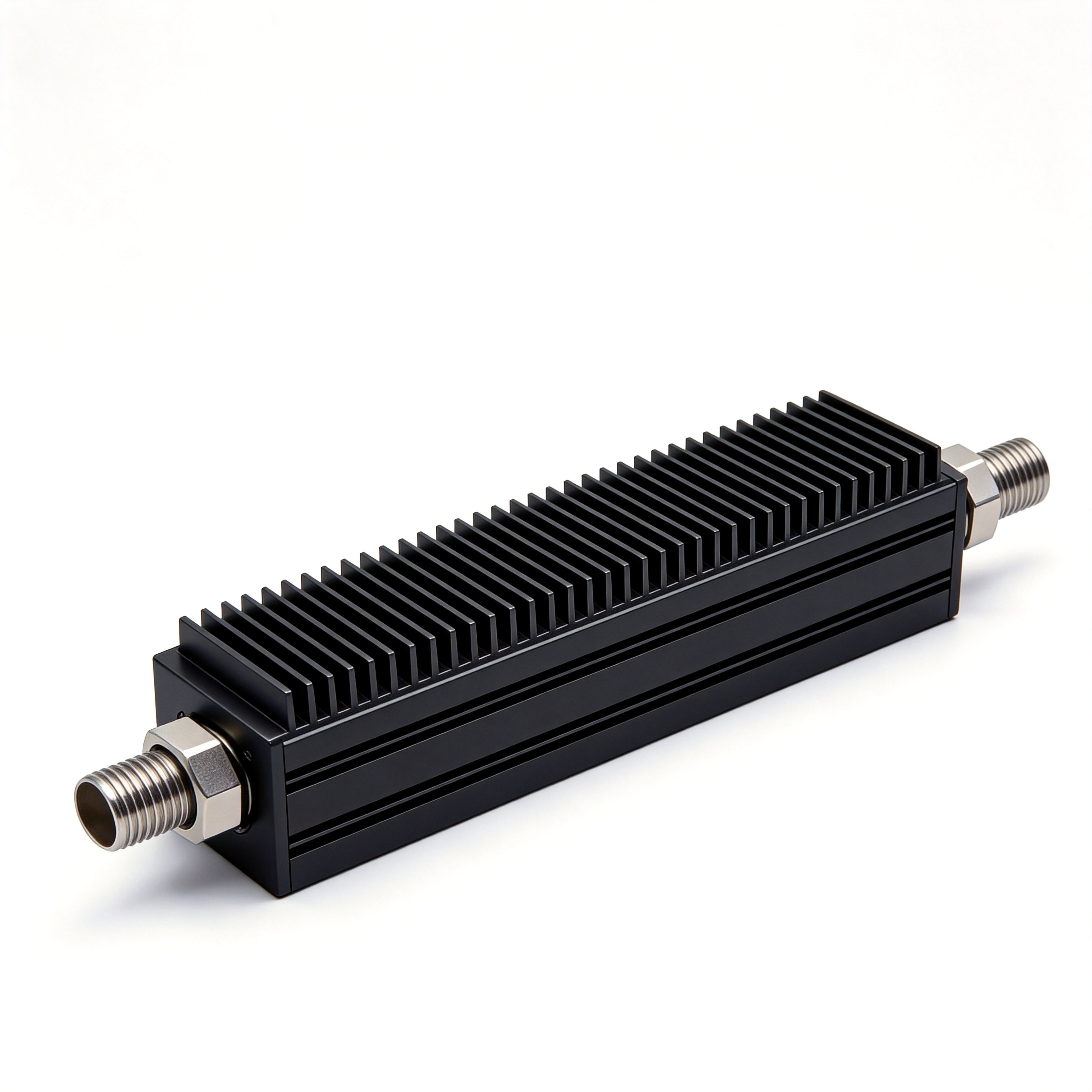

The KYA300 series fixed attenuators cover a frequency range from DC~6GHz up to DC~18GHz, with a power rating of 300W@25°C, attenuation range of 10~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector type is N (J,K).
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA300-N-6-X |
DC~6GHz |
300W |
10~60dB |
1.30 |
N (J,K) |
50Ω |
-55~125°C |
| KYA300-N-18-X |
DC~18GHz |
300W@25°C |
10~60dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
