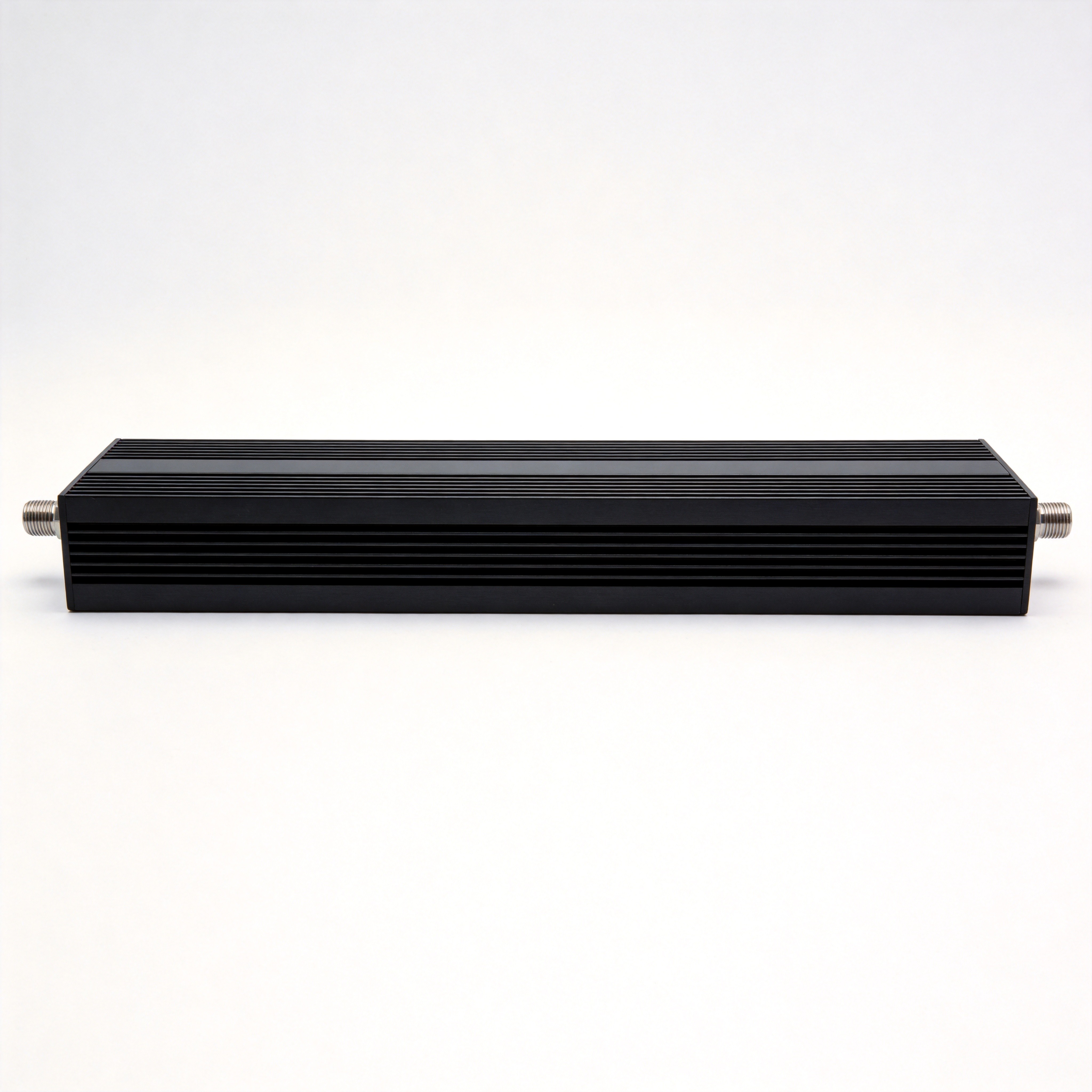

The KYA400 series fixed attenuators cover a frequency range from DC~18GHz, with a power rating of 400W@25°C, attenuation range of 20~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector type is N (J,K).
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA400-N-18-X |
DC~18GHz |
400W@25°C |
20~60dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
