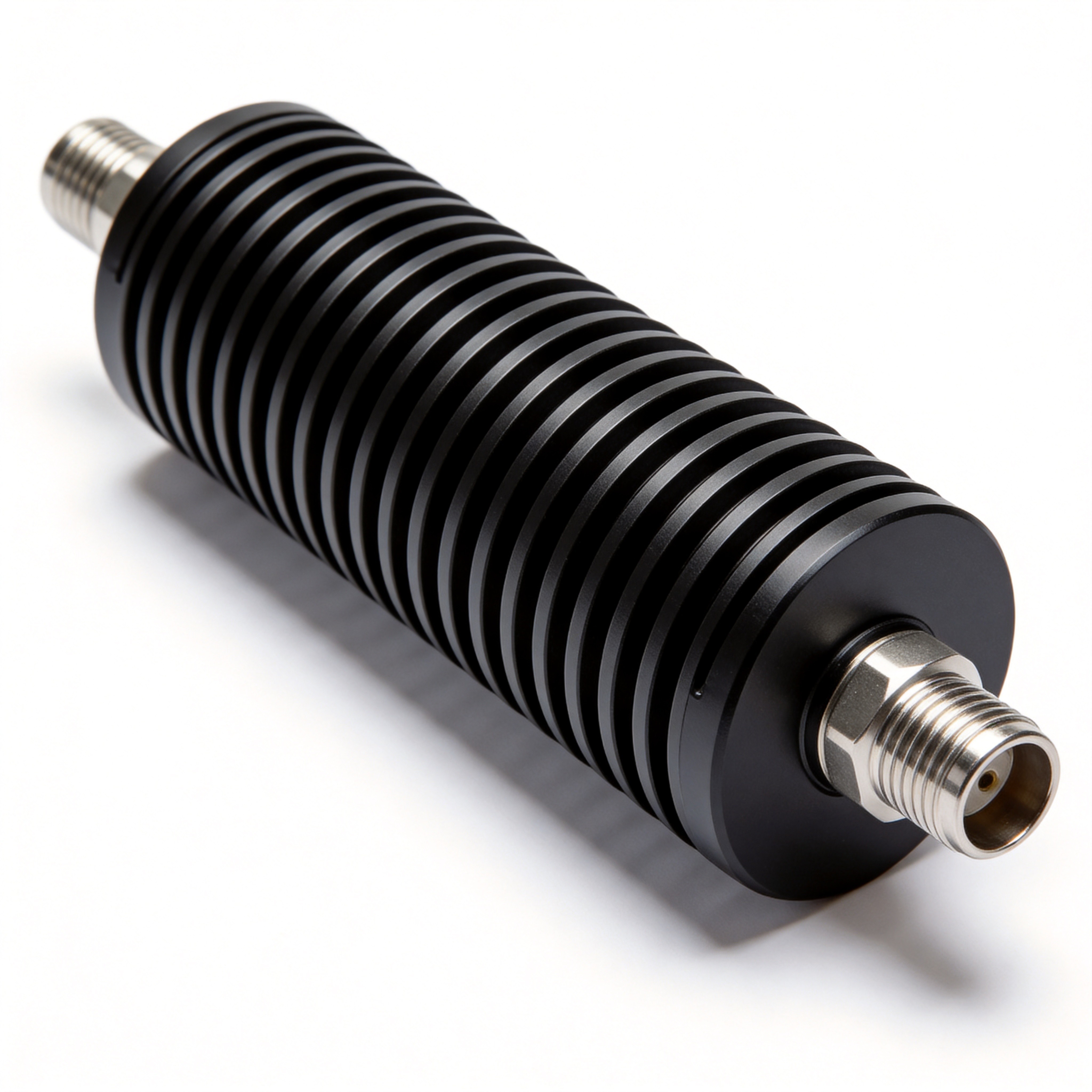

The KYA100 series fixed attenuators cover a frequency range from DC~4GHz up to DC~18GHz, with a power rating of 100W@25°C, attenuation range of 1~70dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N, SMA, TNC, 4.3-10, and 7/16.
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA100-4.3/10-6-X |
DC~6GHz |
100W@25°C |
6~30dB |
1.20~1.25 |
4.3/10 (J,K) |
50Ω |
-55~125°C |
| KYA100-7/16-6-X |
DC~6GHz |
100W@25°C |
3~30dB |
1.20~1.25 |
7/16 (J,K) |
50Ω |
-55~125°C |
| KYA100-N-4-X |
DC~4GHz |
100W |
1~60dB |
1.20 |
N (J,K) |
50Ω |
-55~125°C |
| KYA100-N-18-X |
DC~18GHz |
100W@25°C |
6~70dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
| KYA100-SMA-18-X |
DC~18GHz |
100W@25°C |
6~70dB |
1.20~1.45 |
SMA (J,K) |
50Ω |
-55~125°C |
| KYA100-TNC-18-X |
DC~18GHz |
100W@25°C |
6~40dB |
1.20~1.45 |
TNC (J,K) |
50Ω |
-55~125°C |
