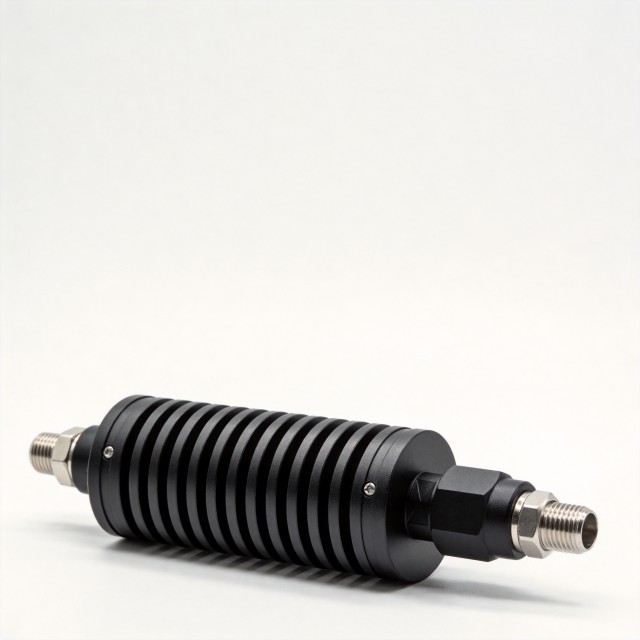

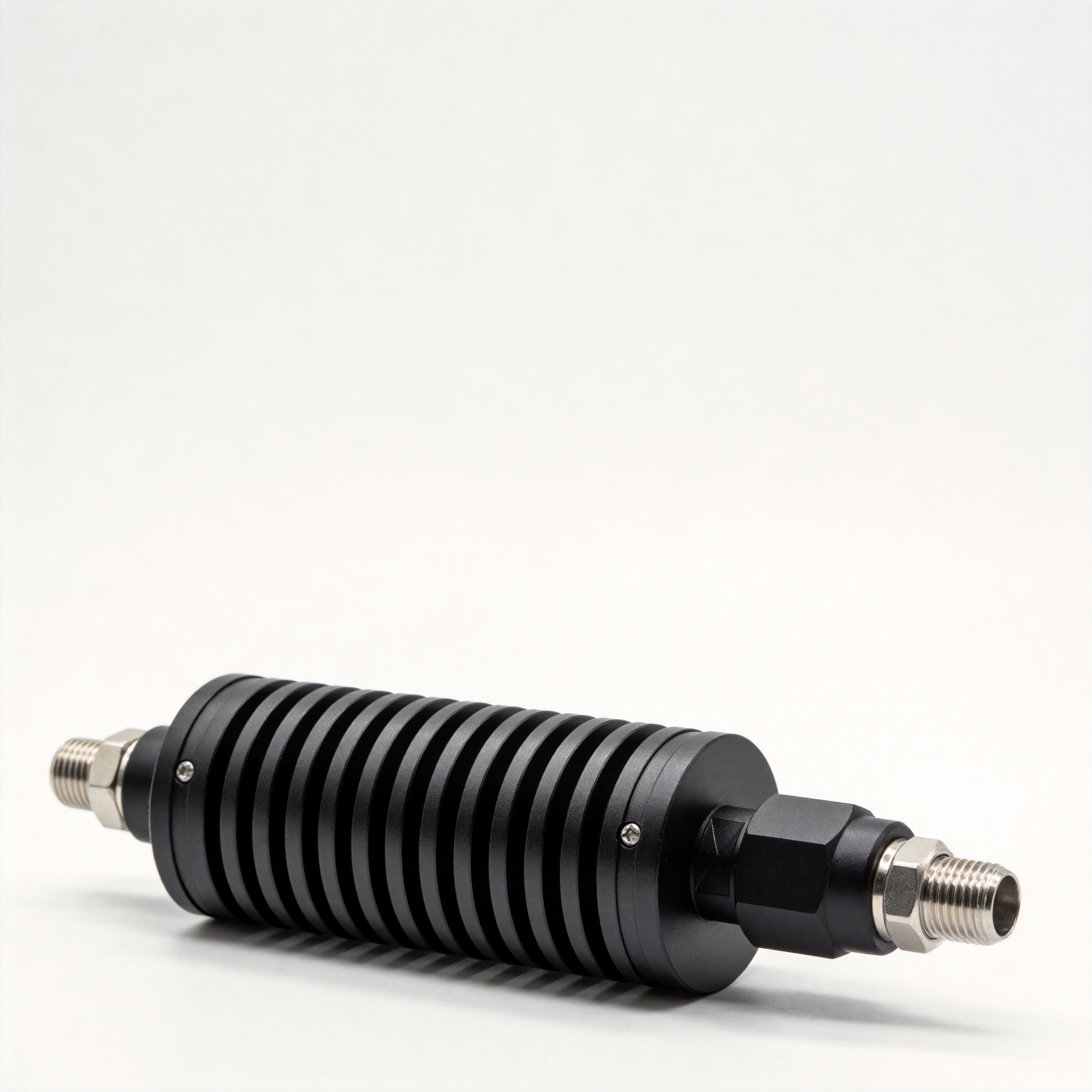

The KYA10 series fixed attenuators cover a frequency range from DC~18GHz up to DC~67GHz, with a power rating of 10W, attenuation range of 1~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N, SMA, 2.92mm, 2.4mm, and 1.85mm.
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA10-N-18-X |
DC~18GHz |
10W@25°C |
1~60dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
| KYA10-SMA-18-X |
DC~18GHz |
10W@25°C |
1~40dB |
1.15~1.35 |
SMA (J,K) |
50Ω |
-55~125°C |
| KYA10-2.92-40-X |
DC~40GHz |
10W@25°C |
1~30dB |
1.40 |
2.92mm (J,K) |
50Ω |
-55~125°C |
| KYA10-2.4-50-X |
DC~50GHz |
10W@25°C |
1~30dB |
1.35 |
2.4mm (J,K) |
50Ω |
-55~125°C |
| KYA10-1.85-67-X |
DC~67GHz |
10W@25°C |
10~30dB |
1.40 |
1.85mm (J,K) |
50Ω |
-55~125°C |
