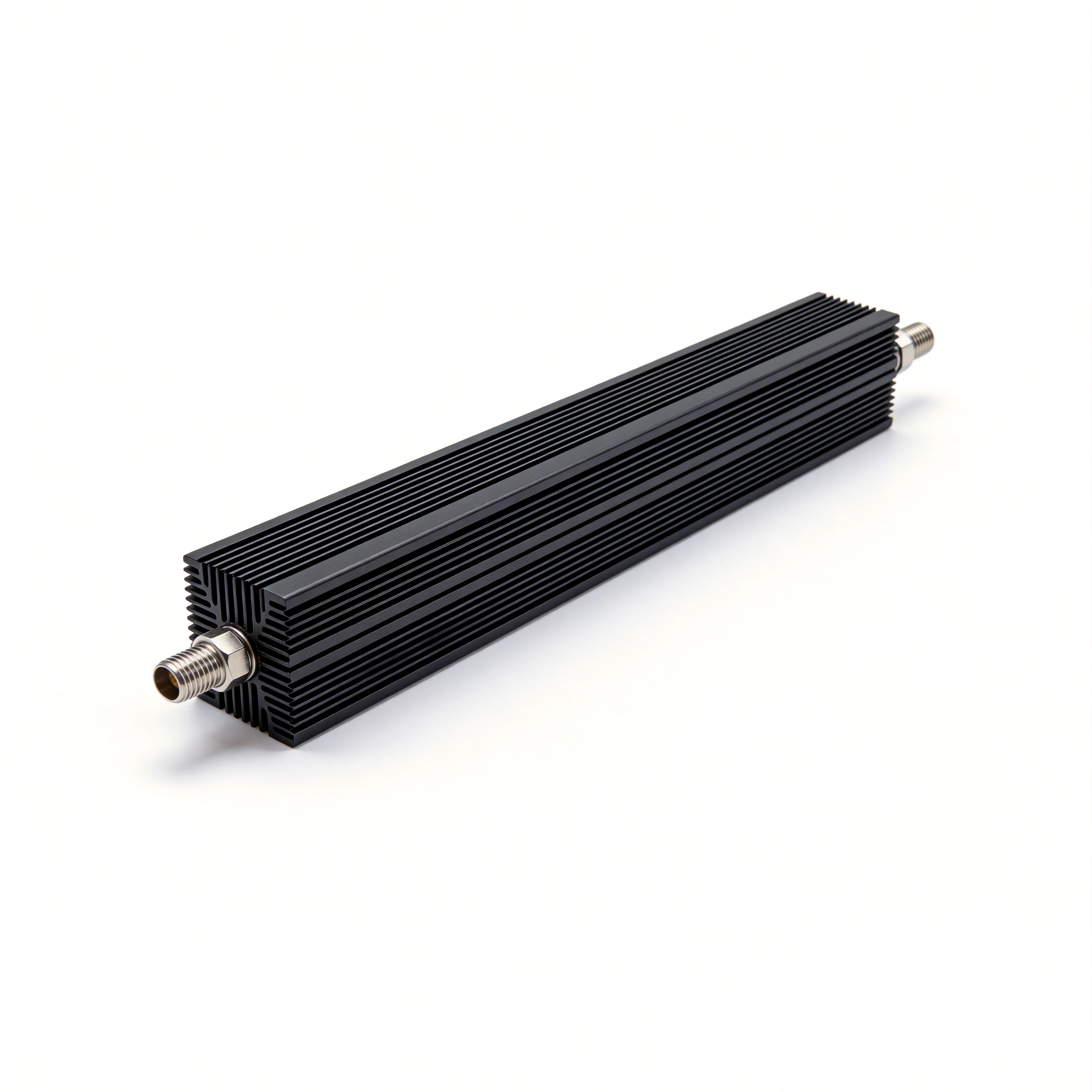

The KYA500 series fixed attenuators cover a frequency range from DC~6GHz up to DC~18GHz, with a power rating of 500W@25°C, attenuation range of 10~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N and 7/16 (J,K).
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA500-7/16-6-X |
DC~6GHz |
500W@25°C |
20~60dB |
1.20~1.25 |
7/16 (J,K) |
50Ω |
-55~125°C |
| KYA500-N-6-X |
DC~6GHz |
500W |
10~60dB |
1.40 |
N (J,K) |
50Ω |
-55~125°C |
| KYA500-N-18-X |
DC~18GHz |
500W@25°C |
10~60dB |
1.25~1.45 |
N (J,K) |
50Ω |
-55~125°C |
