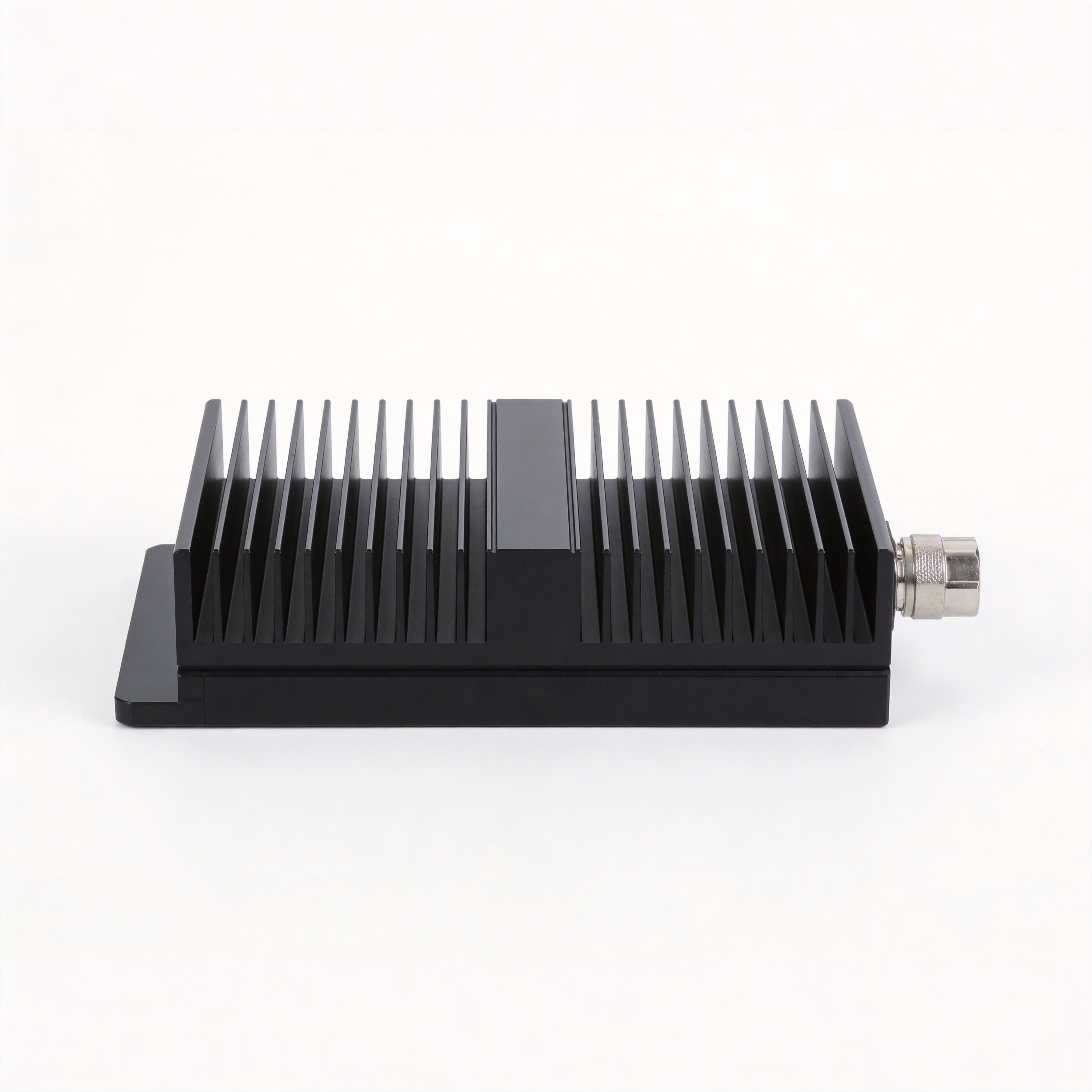

The KYT100 series coaxial terminations cover a frequency range from DC~6GHz up to DC~18GHz, with a power rating of 100W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N, SMA, TNC, 4.3-10, and 7/16, in female or male genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT100-4.3-10-6-M |
DC~6GHz |
100W@25°C |
1.20~1.25 |
4.3-10 Male |
50Ω |
-55~125°C |
M |
| KYT100-7/16-6-M |
DC~6GHz |
100W@25°C |
1.20~1.25 |
7/16 Male |
50Ω |
-55~125°C |
M |
| KYT100-N-18-M |
DC~18GHz |
100W@25°C |
1.15~1.35 |
N Male |
50Ω |
-55~125°C |
M |
| KYT100-SMA-18-M |
DC~18GHz |
100W@25°C |
1.15~1.35 |
SMA Male |
50Ω |
-55~125°C |
M |
| KYT100-TNC-18-F |
DC~18GHz |
100W@25°C |
1.15~1.35 |
TNC Female |
50Ω |
-55~125°C |
F |
