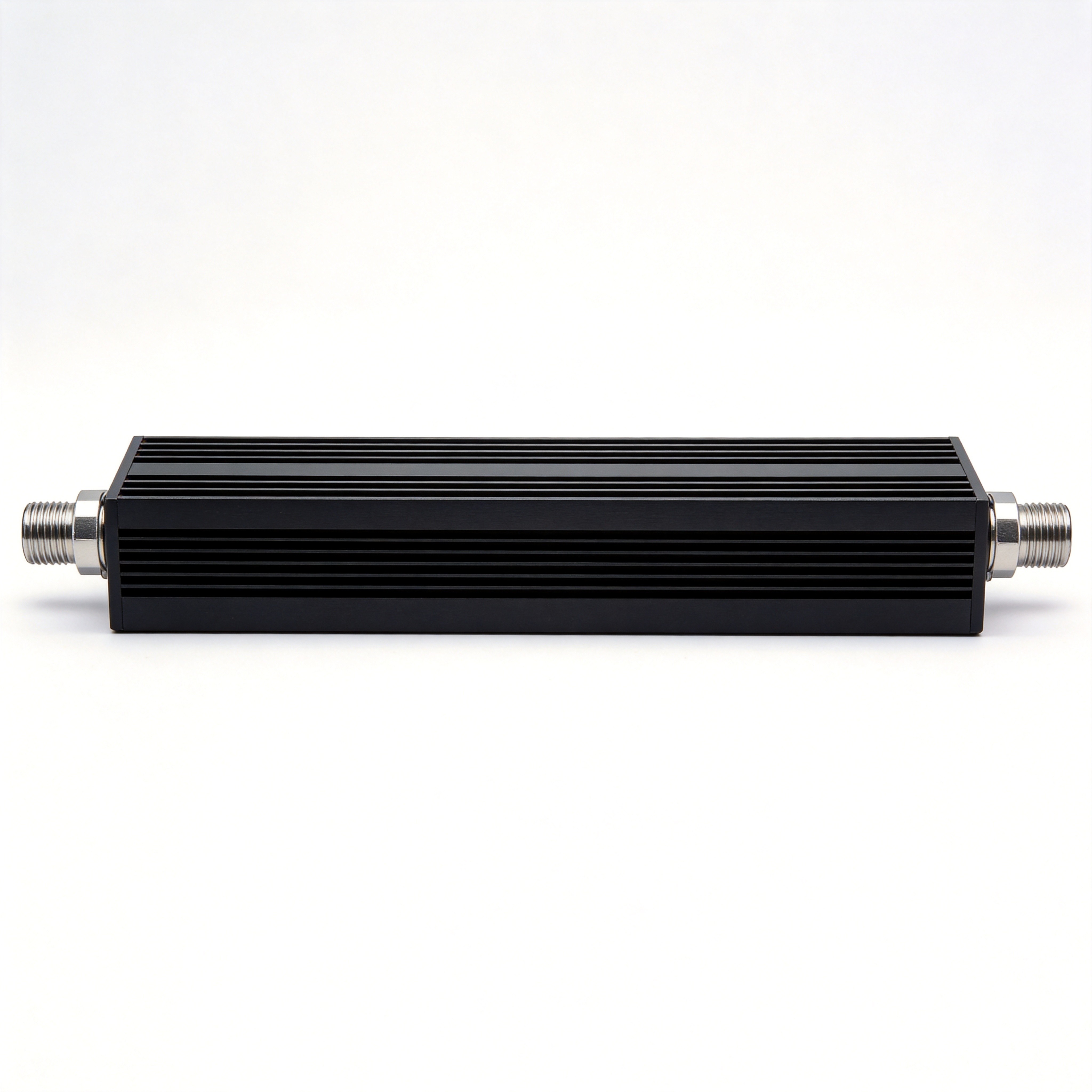

The KYA200 series fixed attenuators cover a frequency range from DC~3GHz up to DC~18GHz, with a power rating of 200W@25°C, attenuation range of 1~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N, SMA, TNC, and 7/16.
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA200-7/16-3-X |
DC~3GHz |
200W@25°C |
3dB |
1.20 |
7/16 (J,K) |
50Ω |
-55~125°C |
| KYA200-N-4-X |
DC~4GHz |
200W |
1~50dB |
1.25 |
N (J,K) |
50Ω |
-55~125°C |
| KYA200-N-18-X |
DC~18GHz |
200W@25°C |
10~60dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
| KYA200-SMA-18-X |
DC~18GHz |
200W@25°C |
10~60dB |
1.20~1.45 |
SMA (J,K) |
50Ω |
-55~125°C |
| KYA200-TNC-18-X |
DC~18GHz |
200W@25°C |
10~60dB |
1.20~1.45 |
TNC (J,K) |
50Ω |
-55~125°C |
