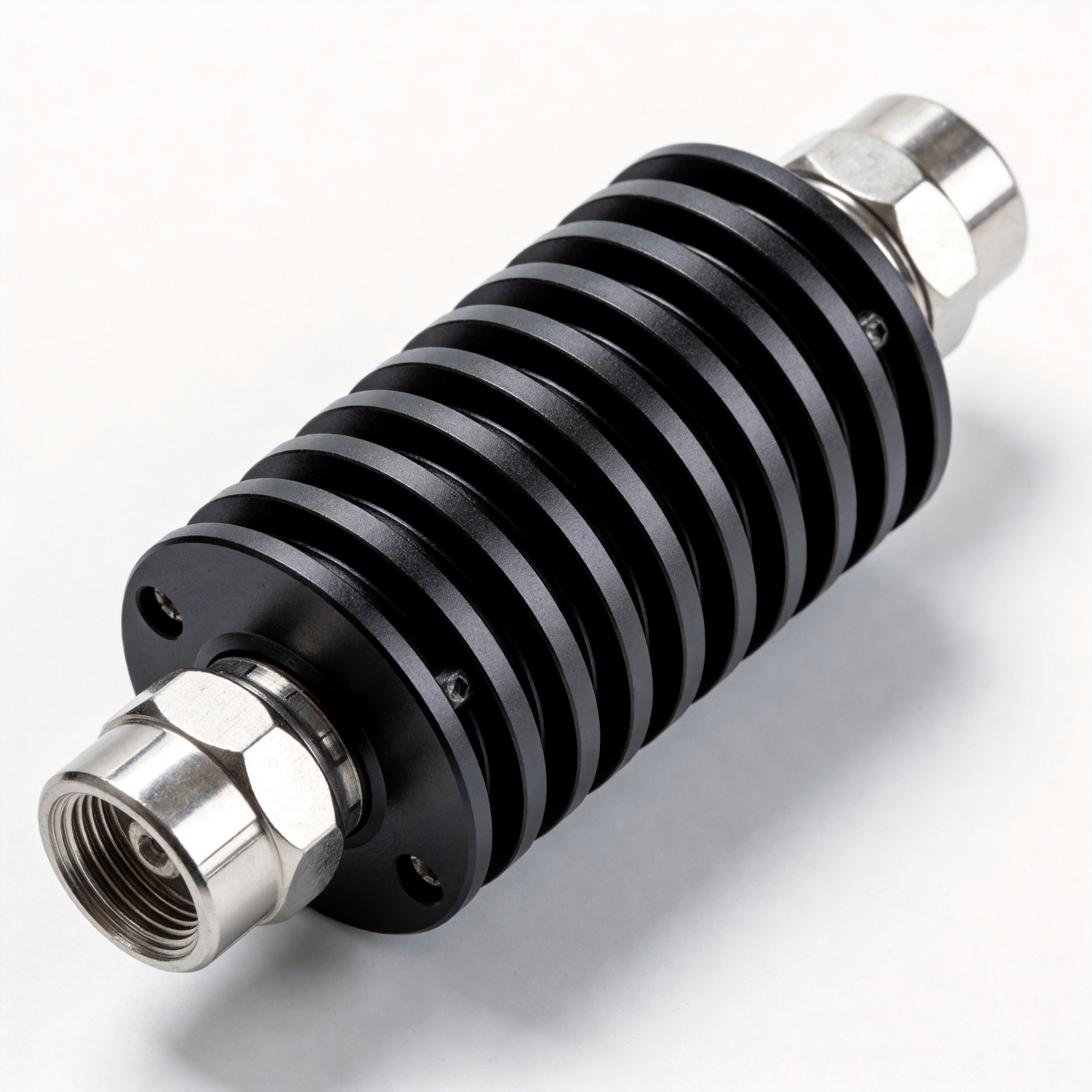

The KYA20 series fixed attenuators cover a frequency range from DC~6GHz up to DC~40GHz, with a power rating of 20W, attenuation range of 1~60dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include BNC, N, SMA, TNC, and 2.92mm.
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA20-BNC-6-X |
DC~6GHz |
20W@25°C |
1~50dB |
1.20~1.25 |
BNC (J,K) |
50Ω |
-55~125°C |
| KYA20-N-6-X |
DC~6GHz |
20W@25°C |
1~60dB |
1.25 |
N (J,K) |
50Ω |
-55~125°C |
| KYA20-SMA-6-X |
DC~6GHz |
20W@25°C |
1~60dB |
1.20 |
SMA (J,K) |
50Ω |
-55~125°C |
| KYA20-N-18-X |
DC~18GHz |
20W@25°C |
1~50dB |
1.20~1.45 |
N (J,K) |
50Ω |
-55~125°C |
| KYA20-SMA-18-X |
DC~18GHz |
20W@25°C |
1~40dB |
1.15~1.35 |
SMA (J,K) |
50Ω |
-55~125°C |
| KYA20-TNC-18-X |
DC~18GHz |
20W@25°C |
1~40dB |
1.20~1.45 |
TNC (J,K) |
50Ω |
-55~125°C |
| KYA20-2.92-40-X |
DC~40GHz |
20W |
3~30dB |
1.30 |
2.92mm (J,K) |
50Ω |
-55~125°C |
