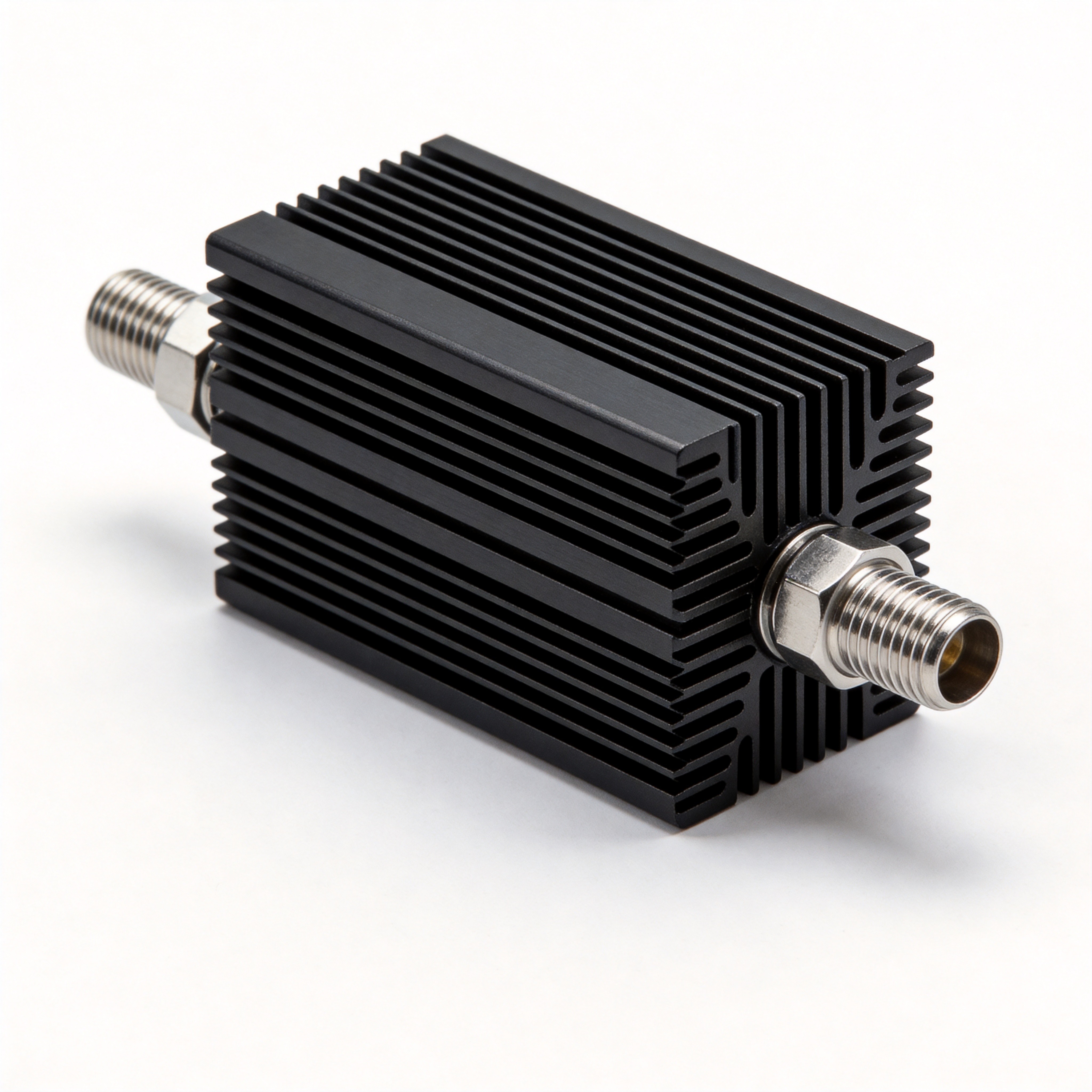

The KYA150 series fixed attenuators cover a frequency range from DC~4GHz, with a power rating of 150W, attenuation range of 1~50dB, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector type is N (J,K).
| Part Number |
Frequency Range |
Power Rating |
Attenuation Range |
Max VSWR |
Connector |
Impedance |
Temp Range |
| KYA150-N-4-X |
DC~4GHz |
150W |
1~50dB |
1.25 |
N (J,K) |
50Ω |
-55~125°C |
