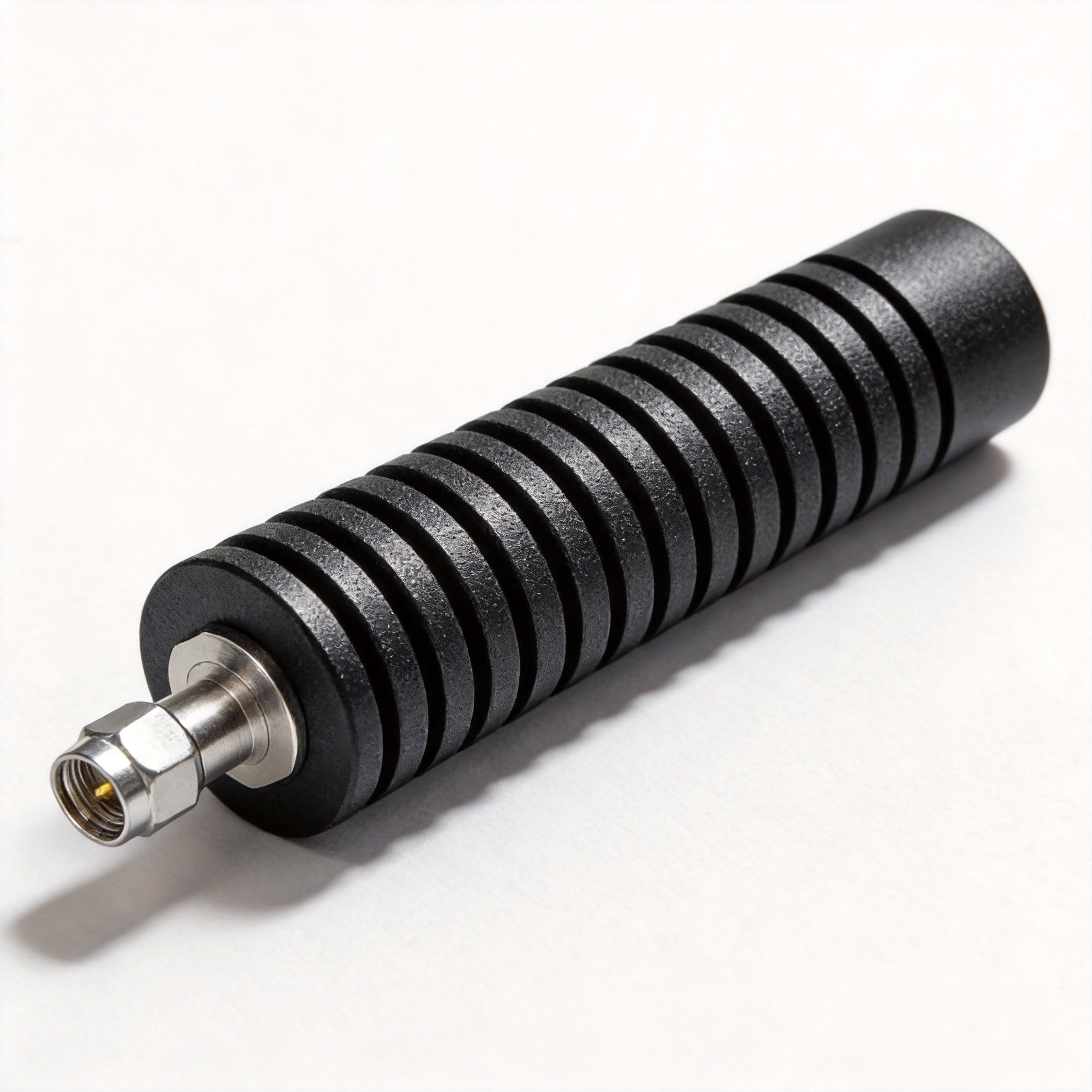

The KYT10 series coaxial terminations cover a frequency range from DC~6GHz up to DC~40GHz, with a power rating of 10W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include BNC, TNC, N, SMA, 4.3-10, 7/16, and 2.92mm, in female or male genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT10-BNC-8-M |
DC~8GHz |
10W@25°C |
1.15~1.20 |
BNC Male |
50Ω |
-55~125°C |
M |
| KYT10-TNC-18-M |
DC~18GHz |
10W@25°C |
1.15~1.40 |
TNC Male |
50Ω |
-55~125°C |
M |
| KYT10-N-18-X |
DC~18GHz |
10W@25°C |
1.20~1.40 (F) / 1.15~1.30 (M) |
N |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT10-SMA-18-X |
DC~18GHz |
10W@25°C |
1.15~1.30 |
SMA |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT10-4.3-10-6-X |
DC~6GHz |
10W@25°C |
1.20~1.25 |
4.3-10 |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT10-7/16-6-F |
DC~6GHz |
10W@25°C |
1.20~1.25 |
7/16 Female |
50Ω |
-55~125°C |
F |
| KYT10-2.92-40-M |
DC~40GHz |
10W@25°C |
1.20~1.40 |
2.92mm Male |
50Ω |
-55~125°C |
M |
