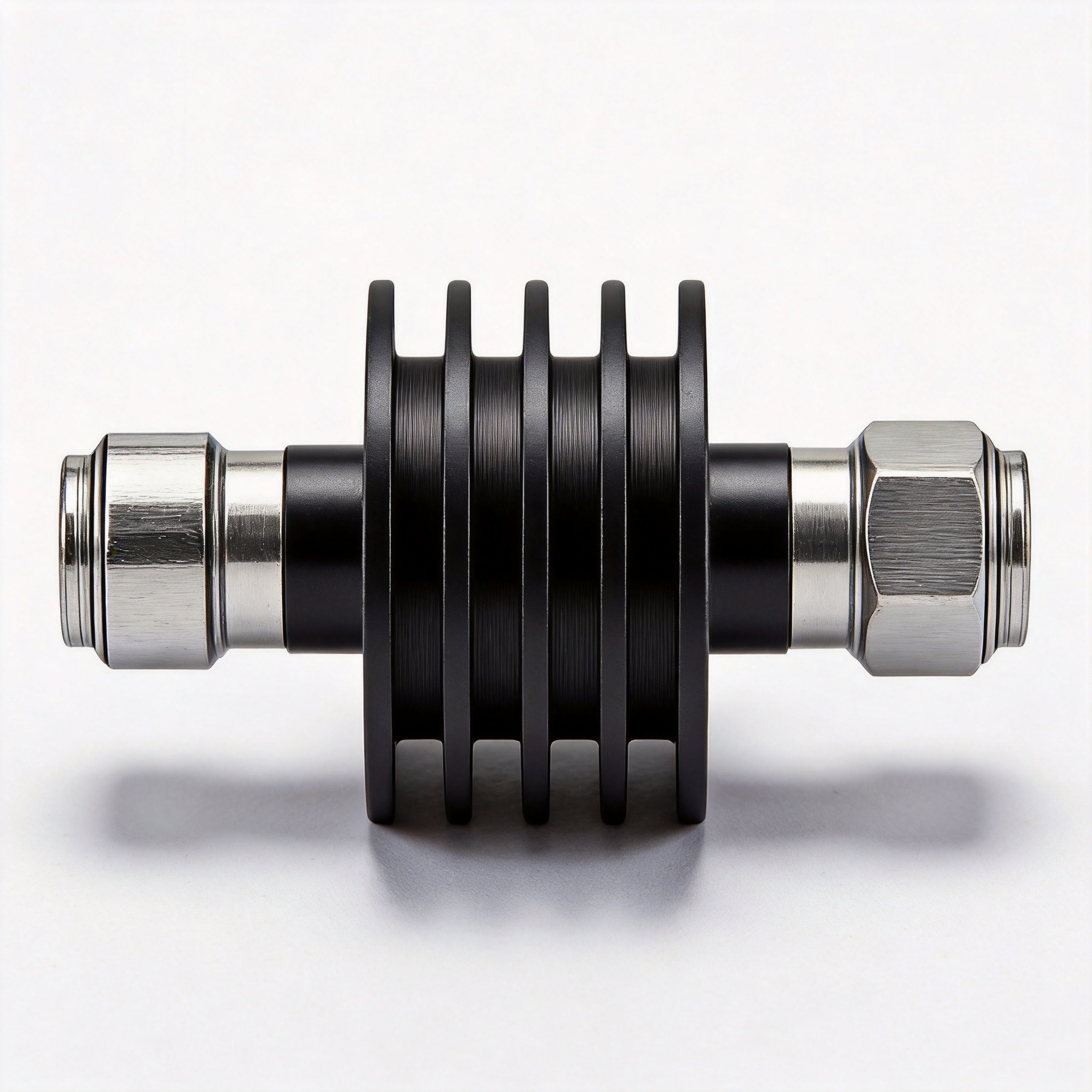

The KYA5 series fixed attenuators cover a frequency range from DC~6GHz up to DC~67GHz, with a power rating of 5W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include BNC, N, SMA, 4.3-10, 2.92mm, 2.4mm, and 1.85mm, with selectable attenuation from 1dB to 30dB (up to 60dB for N type), in female (J) or male (K) genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYA5-BNC-6-X |
DC~6GHz |
5W@25°C |
1.2~1.25 |
BNC |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-4.3-10-6-X |
DC~6GHz |
5W@25°C |
1.15~1.20 |
4.3-10 |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-N-18-X |
DC~18GHz |
5W@25°C |
1.15~1.35 |
N |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-SMA-18-X |
DC~18GHz |
5W@25°C |
1.20~1.30 |
SMA |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-2.92-40-X |
DC~40GHz |
5W |
1.35 |
2.92mm |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-2.4-50-X |
DC~50GHz |
5W |
1.35 |
2.4mm |
50Ω |
-55~125°C |
F (J) / M (K) |
| KYA5-1.85-67-X |
DC~67GHz |
5W |
1.4 |
1.85mm |
50Ω |
-55~125°C |
F (J) / M (K) |
