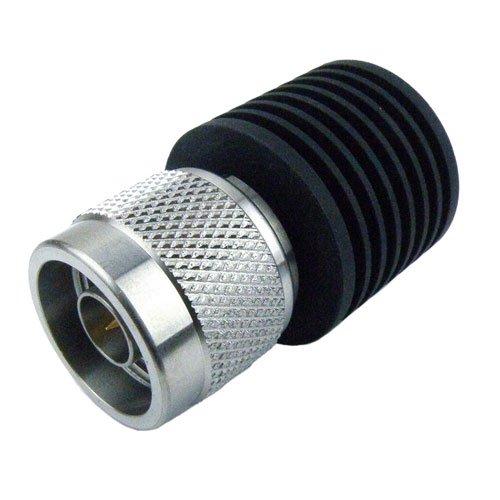

The KYT20 series coaxial terminations cover a frequency range from DC~6GHz up to DC~26.5GHz, with a power rating of 20W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include BNC, N, SMA, and TNC, in female or male genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT20-BNC-6-M |
DC~6GHz |
20W@25°C |
1.15~1.20 |
BNC Male |
50Ω |
-55~125°C |
M |
| KYT20-N-18-X |
DC~18GHz |
20W@25°C |
1.20~1.40 |
N |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT20-SMA-26.5-X |
DC~26.5GHz |
20W@25°C |
1.15~1.30 |
SMA Male |
50Ω |
-55~125°C |
M |
| KYT20-TNC-18-X |
DC~18GHz |
20W@25°C |
1.20~1.40 |
TNC |
50Ω |
-55~125°C |
F (A) / M (B) |
