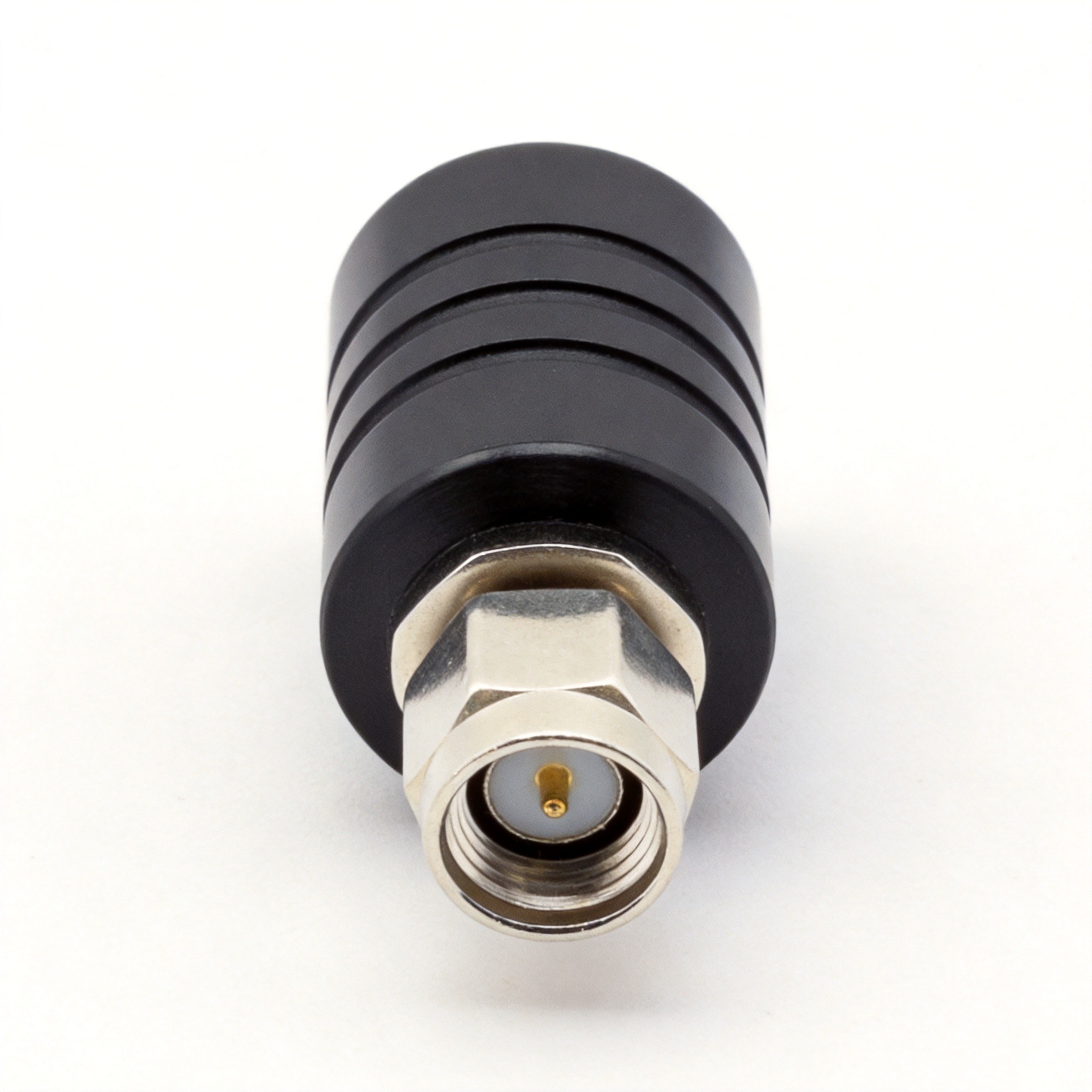

Keyan Coaxial Terminations — broadband coverage from DC to 67GHz and average power handling up to 1000W, with low VSWR and dependable impedance matching for transmitters, antenna systems and test & measurement applications.
| Part Number | Frequency Range | Power Rating | Max VSWR | Connector | Impedance | Temp Range | Gender |
|---|---|---|---|---|---|---|---|
| KYT2-BNC-8-F | DC~8GHz | 2W@25°C | 1.15~1.20 | BNC Female | 50Ω | -55~125°C | F |
| KYT2-TNC-8-F | DC~8GHz | 2W@25°C | 1.15~1.20 | TNC Female | 50Ω | -55~125°C | F |
| KYT2-4.3-10-8-F | DC~8GHz | 2W@25°C | 1.20~1.25 | 4.3-10 Female | 50Ω | -55~125°C | F |
| KYT2-7/16-8-F | DC~8GHz | 2W@25°C | 1.20~1.25 | 7/16 Female | 50Ω | -55~125°C | F |
| KYT2-N-18-X | DC~18GHz | 2W@25°C | 1.15~1.30 | N | 50Ω | -55~125°C | F (A) / M (B) |
| KYT2-SMA-18-X | DC~18GHz | 2W@25°C | 1.15~1.30 | SMA | 50Ω | -55~125°C | F (A) / M (B) |
| KYT2-TNC-18-M | DC~18GHz | 2W@25°C | 1.15~1.30 | TNC Male | 50Ω | -55~125°C | M |
| KYT2-SMA-26.5-M | DC~26.5GHz | 2W@25°C | 1.15~1.30 | SMA Male | 50Ω | -55~125°C | M |
| KYT2-2.92-40-X | DC~40GHz | 2W@25°C | 1.20~1.35 | 2.92mm | 50Ω | -55~125°C | F (A) / M (B) |
