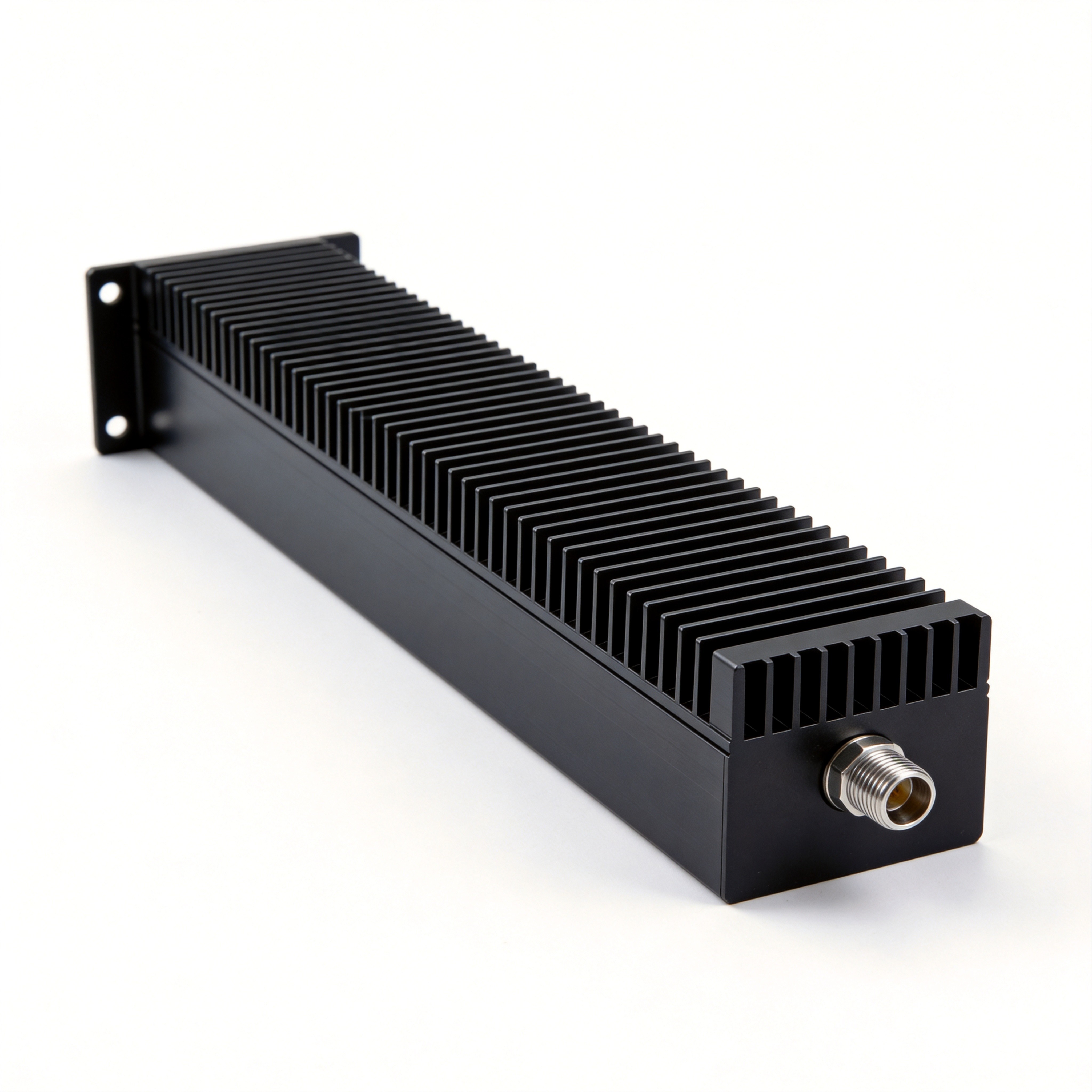

The KYT500 series coaxial terminations cover a frequency range from DC~6GHz up to DC~18GHz, with a power rating of 500W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N and 7/16, in female or male genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT500-7/16-6-F |
DC~6GHz |
500W@25°C |
1.20~1.25 |
7/16 Female |
50Ω |
-55~125°C |
F |
| KYT500-N-18-M |
DC~18GHz |
500W@25°C |
1.20~1.45 |
N Male |
50Ω |
-55~125°C |
M |
