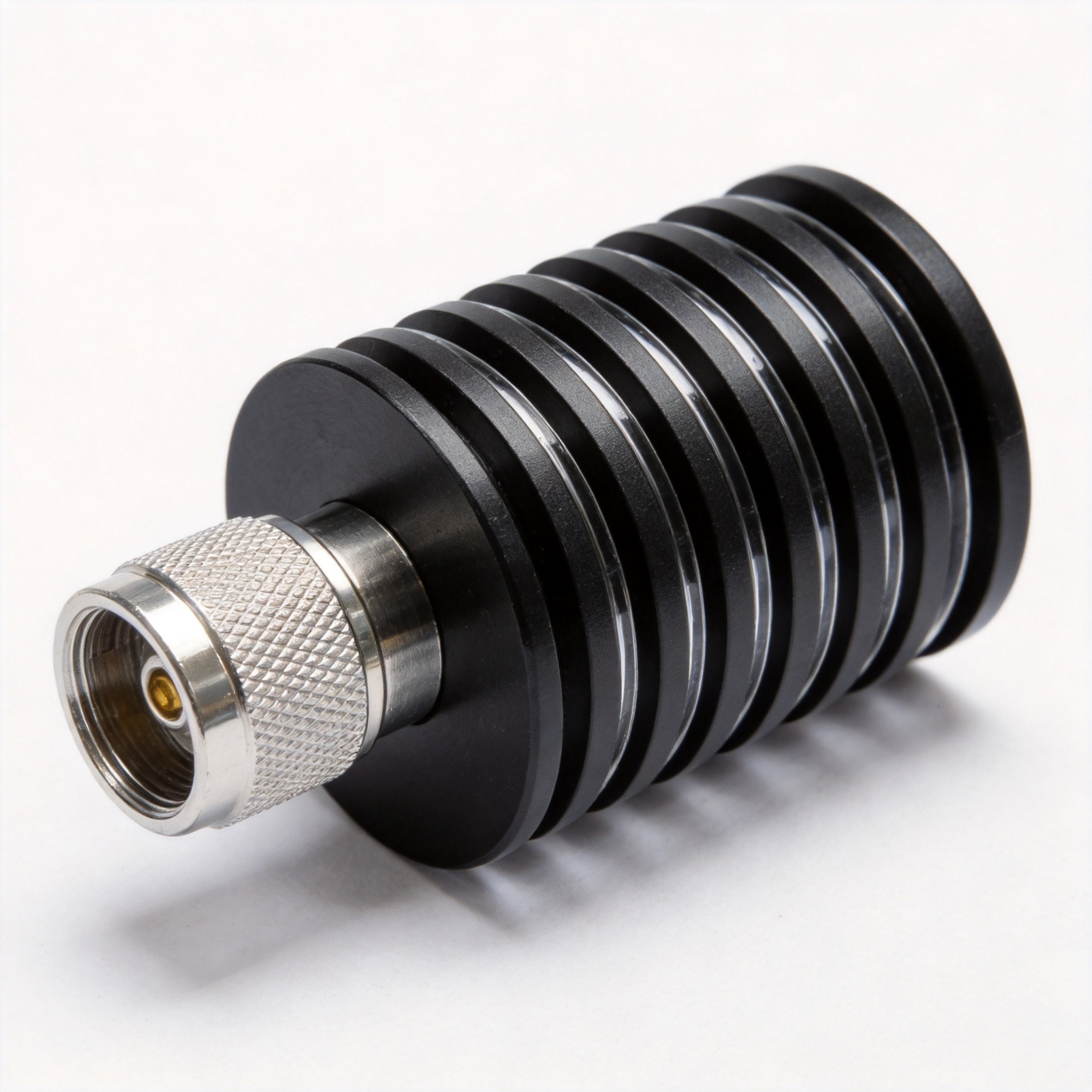

The KYT25 series coaxial terminations cover a frequency range from DC~18GHz up to DC~26.5GHz, with a power rating of 25W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include N and SMA, in male gender.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT25-N-18-M |
DC~18GHz |
25W@25°C |
1.20~1.40 |
N Male |
50Ω |
-55~125°C |
M |
| KYT25-SMA-18-M |
DC~18GHz |
25W@25°C |
1.15~1.30 |
SMA Male |
50Ω |
-55~125°C |
M |
| KYT25-SMA-26.5-M |
DC~26.5GHz |
25W@25°C |
1.15~1.30 |
SMA Male |
50Ω |
-55~125°C |
M |
