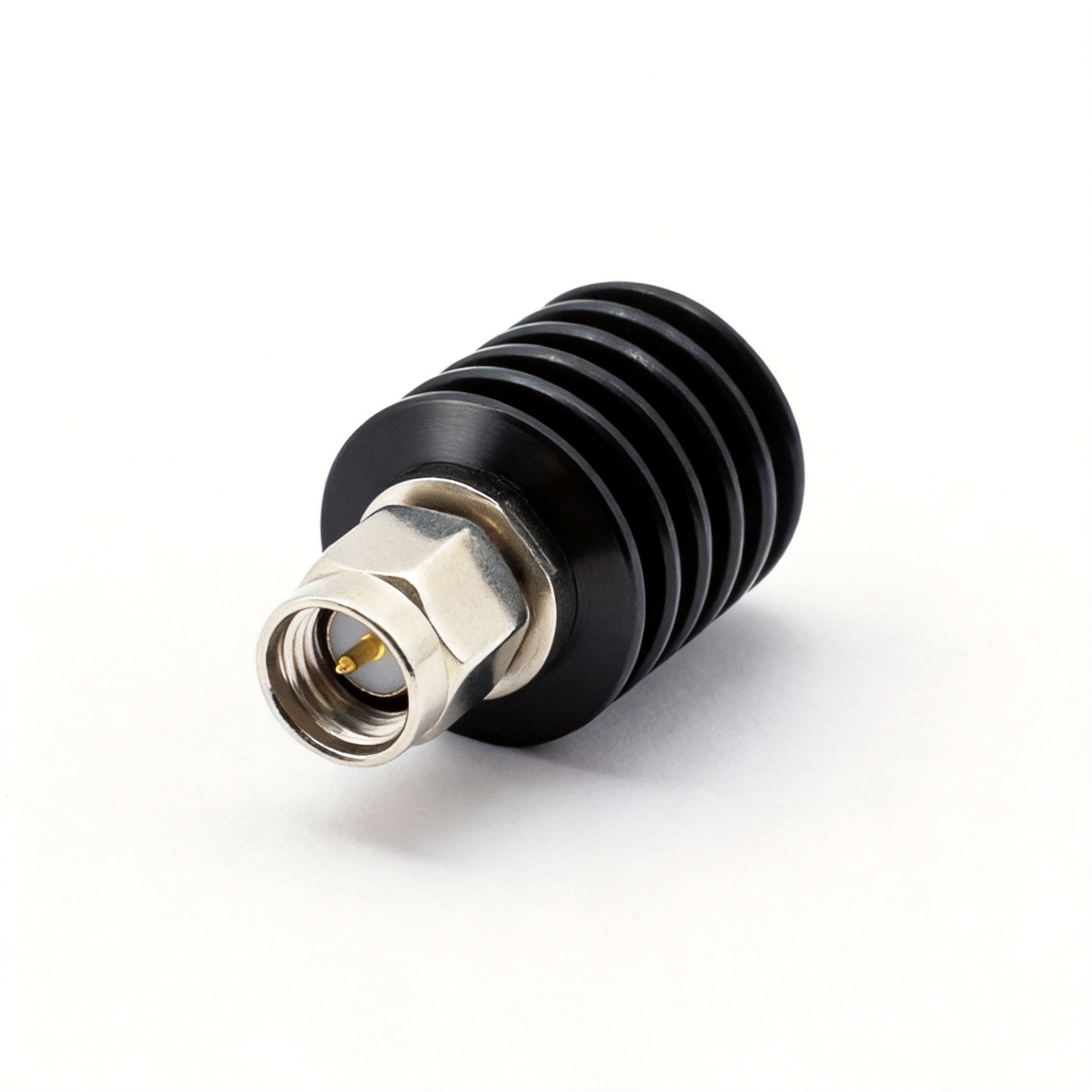

The KYT5 series coaxial terminations cover a frequency range from DC~6GHz up to DC~40GHz, with a power rating of 5W@25°C, nominal impedance of 50Ω, and an operating temperature range of -55~125°C. Available connector types include BNC, TNC, N, SMA, 7/16, and 2.92mm, in female or male genders.
| Part Number |
Frequency Range |
Power Rating |
Max VSWR |
Connector |
Impedance |
Temp Range |
Gender |
| KYT5-7/16-6-F |
DC~6GHz |
5W@25°C |
1.20~1.25 |
7/16 Female |
50Ω |
-55~125°C |
F |
| KYT5-BNC-8-X |
DC~8GHz |
5W@25°C |
1.15~1.20 |
BNC |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT5-N-18-X |
DC~18GHz |
5W@25°C |
1.15~1.30 |
N |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT5-SMA-18-M |
DC~18GHz |
5W@25°C |
1.15~1.30 |
SMA Male |
50Ω |
-55~125°C |
M |
| KYT5-TNC-18-X |
DC~18GHz |
5W@25°C |
1.20~1.40 |
TNC |
50Ω |
-55~125°C |
F (A) / M (B) |
| KYT5-SMA-26.5-M |
DC~26.5GHz |
5W@25°C |
1.15~1.30 |
SMA Male |
50Ω |
-55~125°C |
M |
| KYT5-2.92-40-X |
DC~40GHz |
5W@25°C |
1.20~1.35 |
2.92mm |
50Ω |
-55~125°C |
F (A) / M (B) |
